M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Model Number : SW19 Male Plug

Type : SW19 Self-locking series

Application : Industrial

Gender : Male

Industrial electronics : accessories

MOQ : 2 pieces

Price : $2-3.20 / piece

Contact Now

M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector
Products Description
SW19 Self-locking series

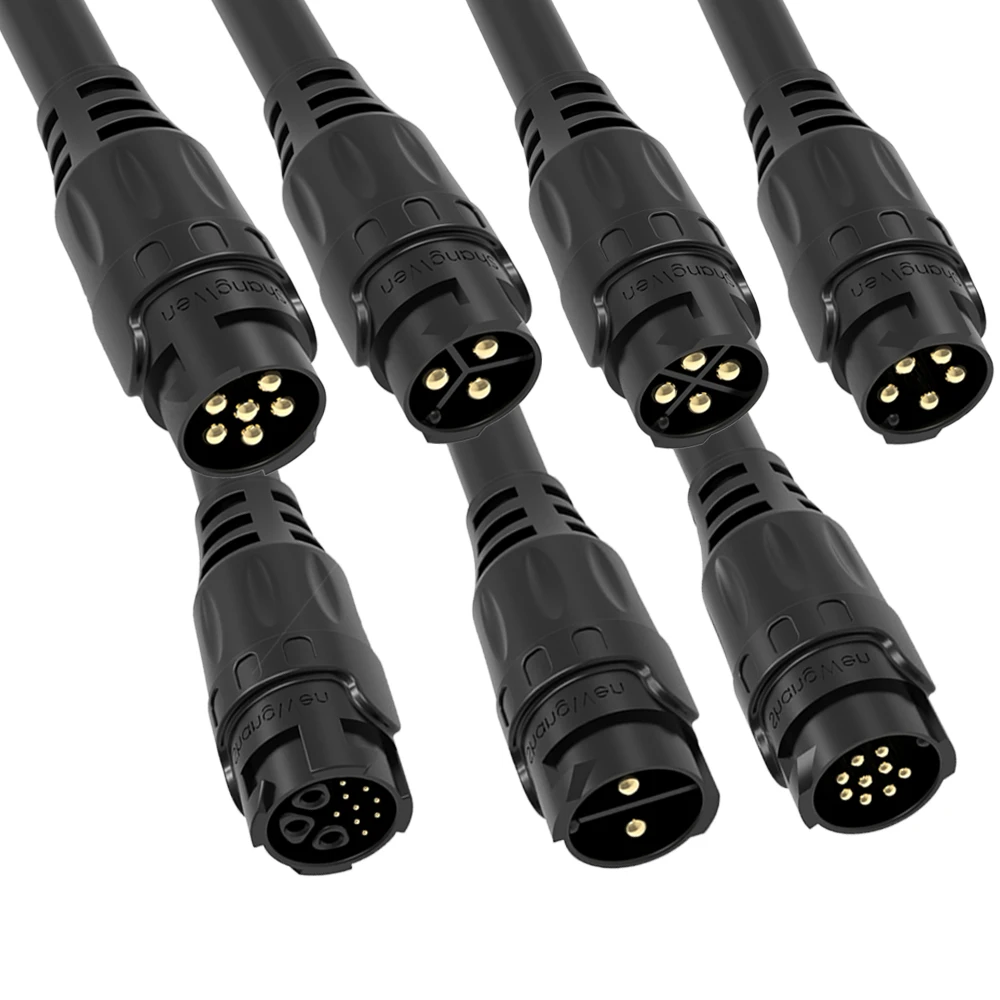

M19 series is an industrial connector, which includes male plug, female plug and male socket.
Feature: ☑Quick, simple self locking system
☑Connect reliably
☑Small size of product
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑Waterproof rating IP67 ☑All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification.
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector

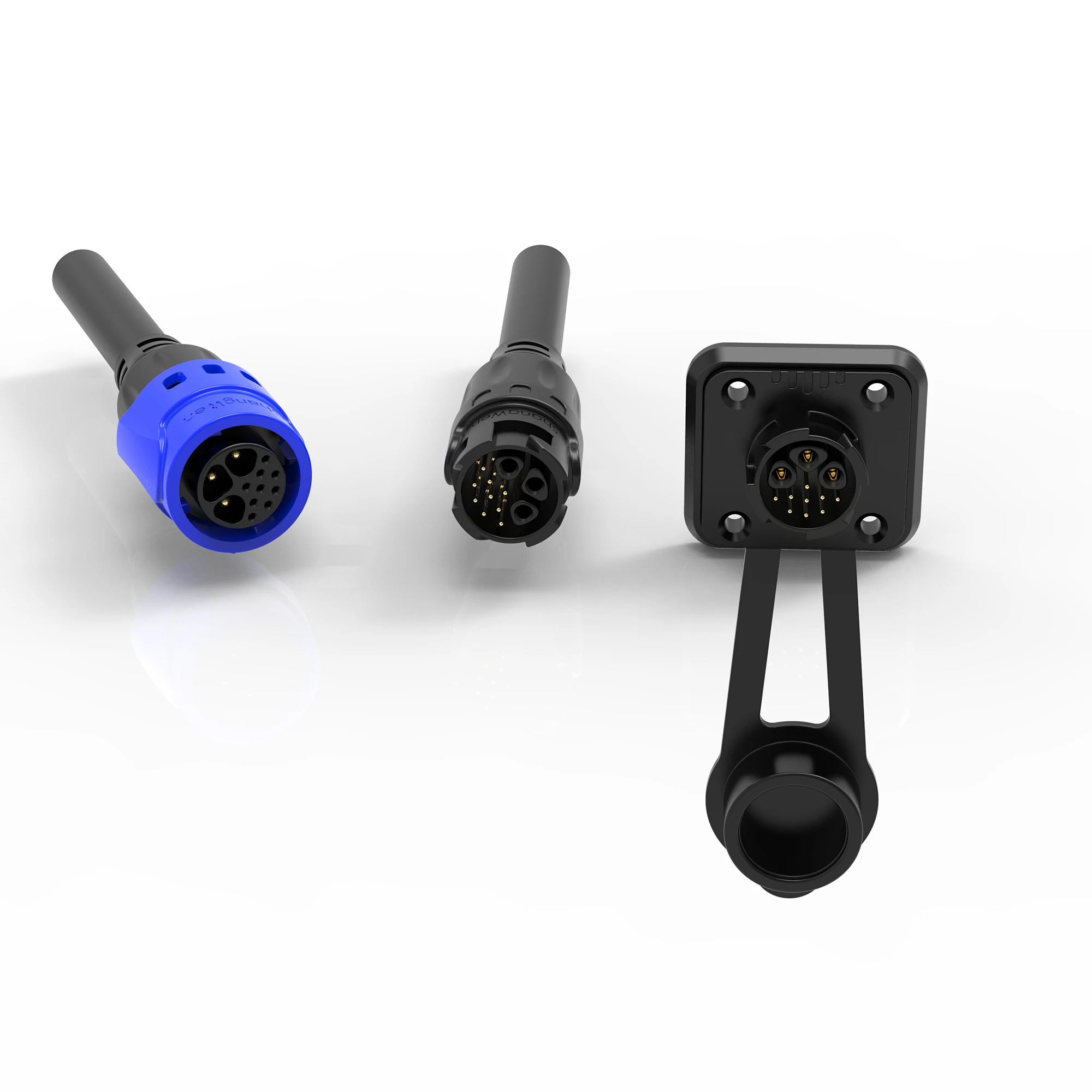

3+9 pin
Male plug & Female plug & Male socket
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector

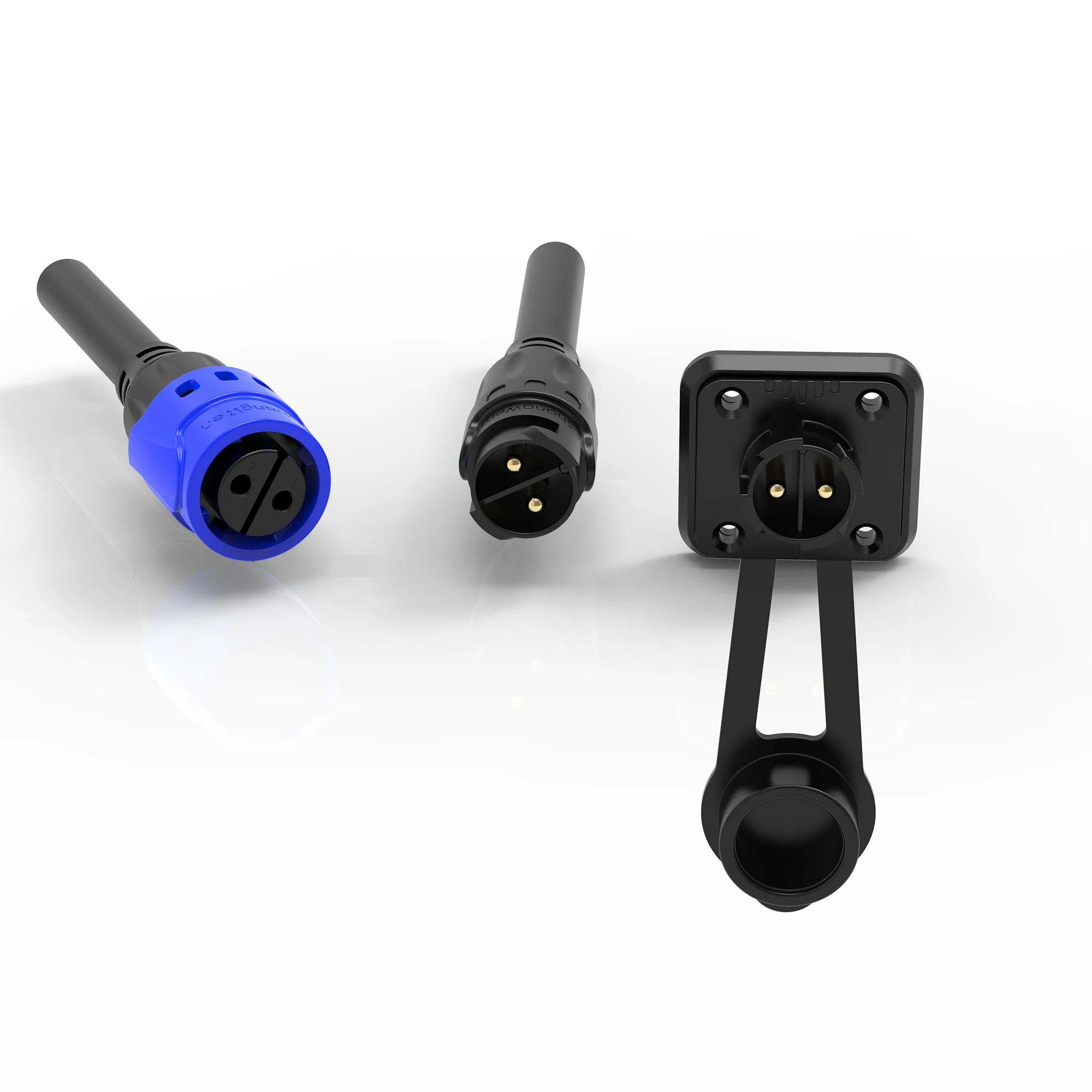

2 pin Male plug & Female plug & Male socket
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector

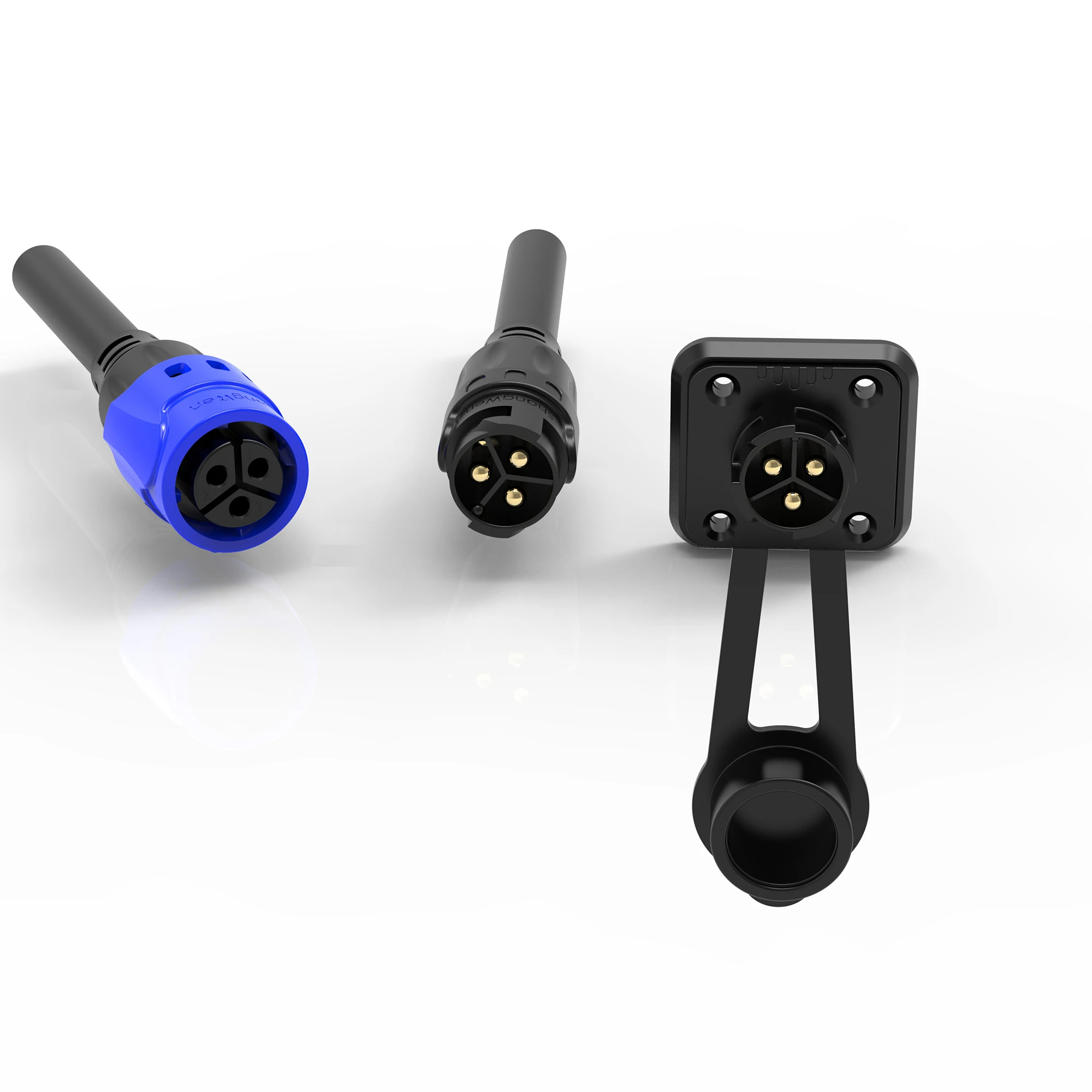

3 pin
Male plug & Female plug & Male socket
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector

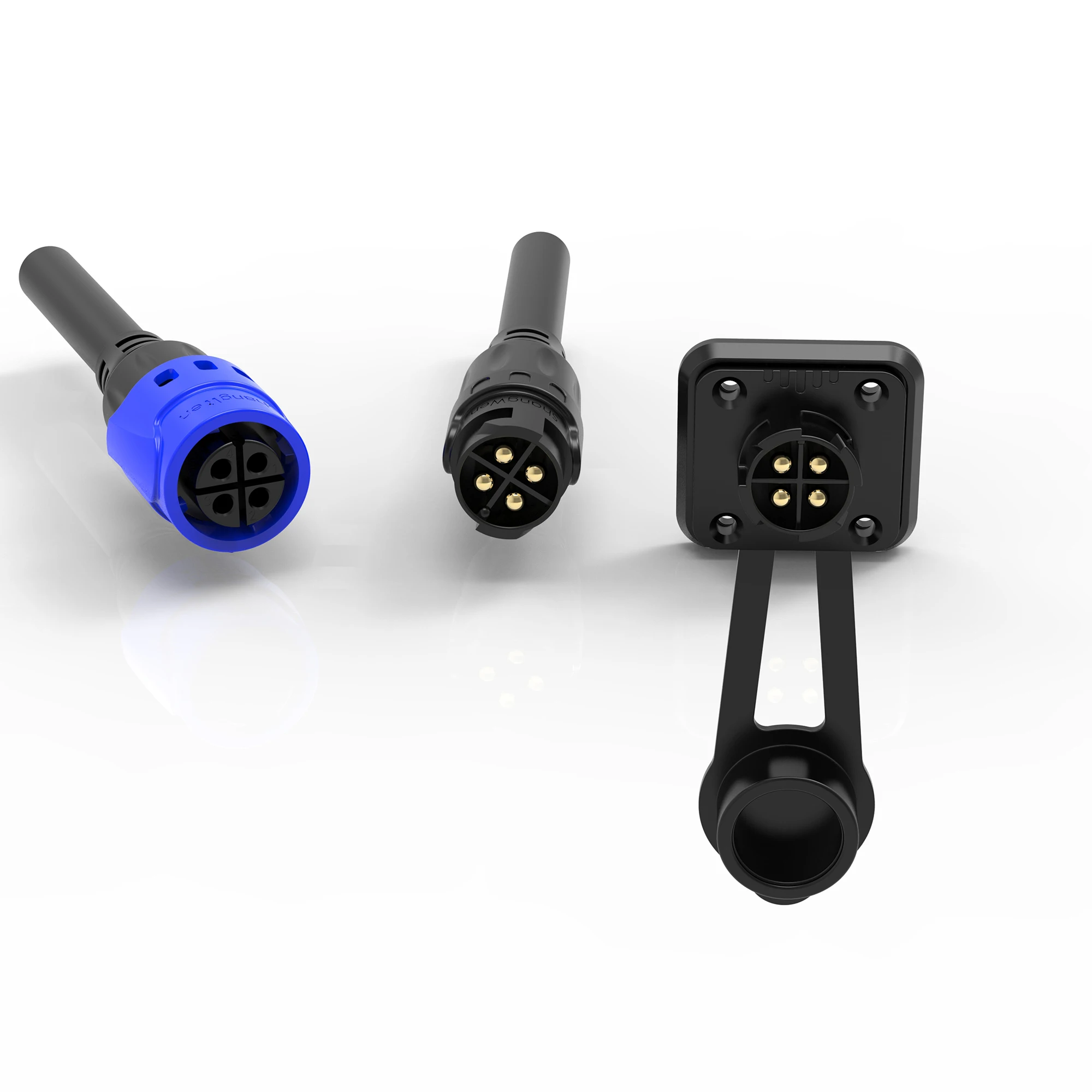

4 pin
Male plug & Female plug & Male socket
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector

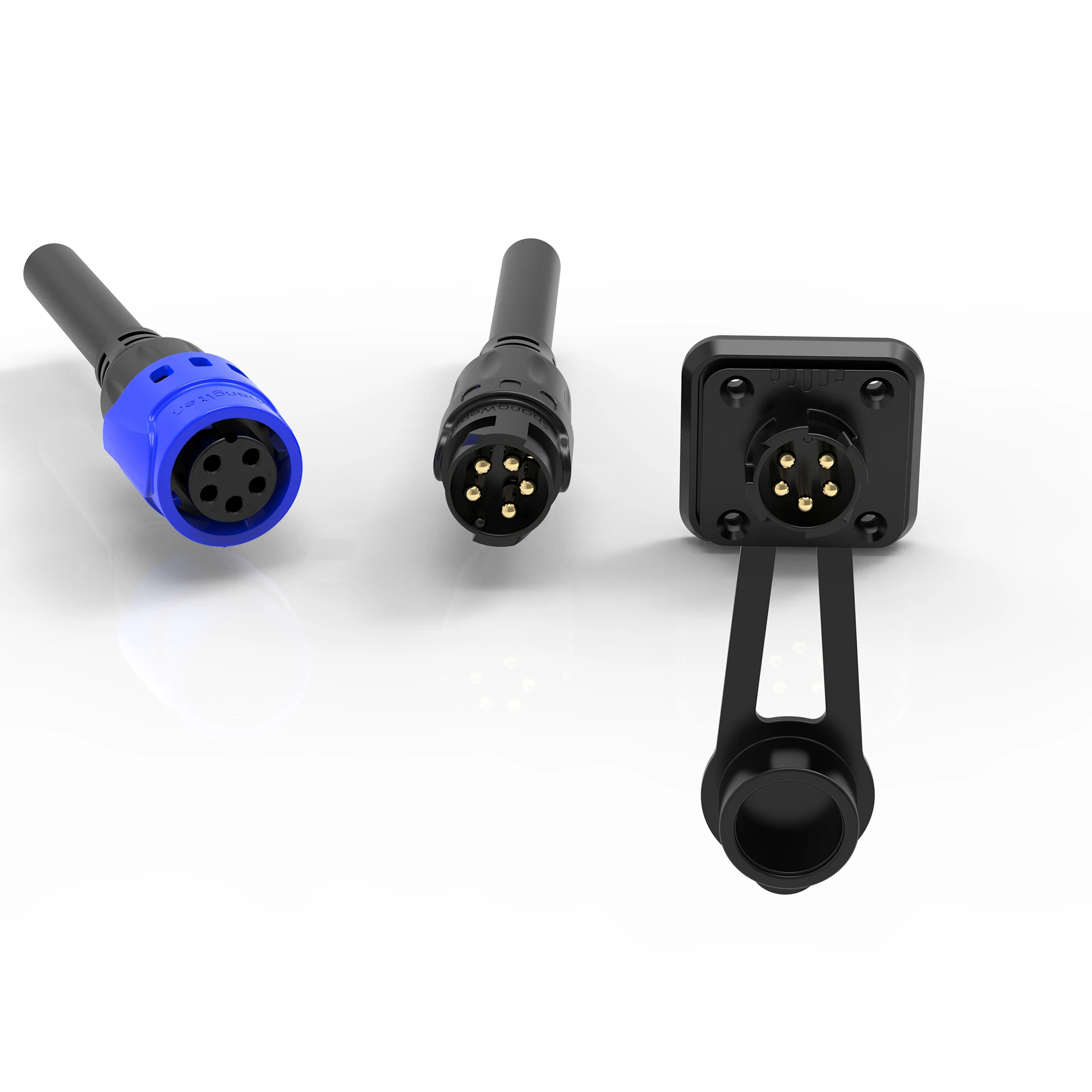

5 pin
Male plug & Female plug & Male socket
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector
6 pin
Male plug & Female plug & Male socket
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector
9 pin
male plug & female plug & male socket
1.Electrical parameters
Pins
3+9pin, 2pin, 3pin, 4pin, 5pin, 6pin, 9pin
Rated current
20A
Rated voltage
300V AC
Withstand voltage
1500V
Insulation resistance
≥100mΩ
Contact resistance
≤10mΩ
2.Mechanical parameters
Service life
＞1000 times
Power line
Φ4.5mm-Φ11mm
Cable size
0.3mm²-2.5mm²(22AWG-12AWG)
Type of terminals
Screw terminal and soldering terminal available
3.Material and environmental parameters
Shell
High performance engineering plastics
Contacts
Copper alloy
Contact diameter
Φ2.4mm
Protection degree
IP67
Flame-retardant grade
UL94-V0
Temperature range
-40℃~105℃

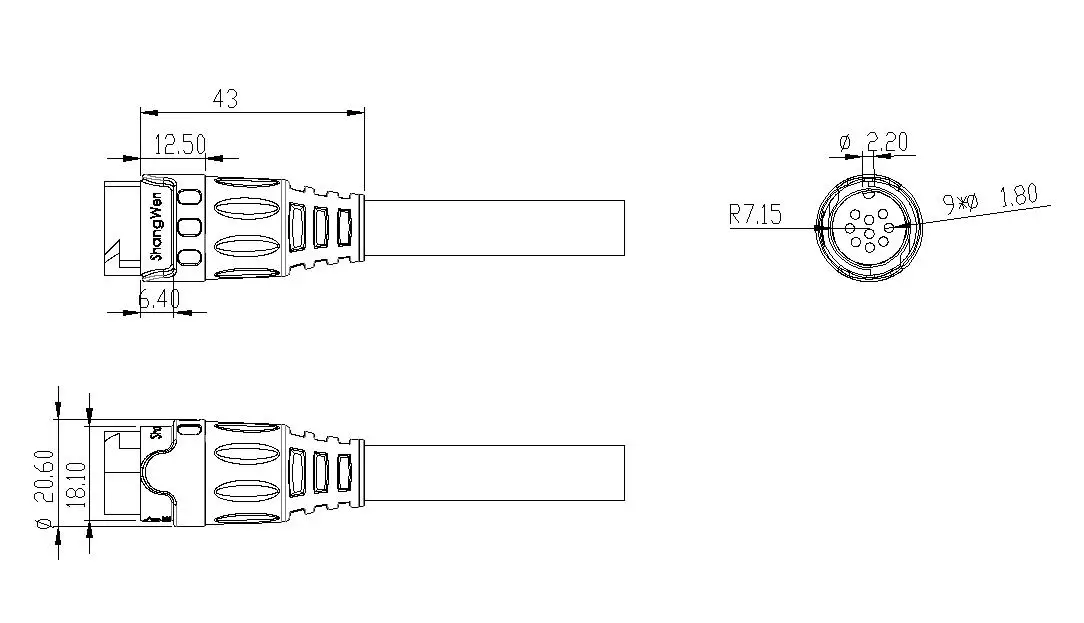

4.Size reference (unit /mm)

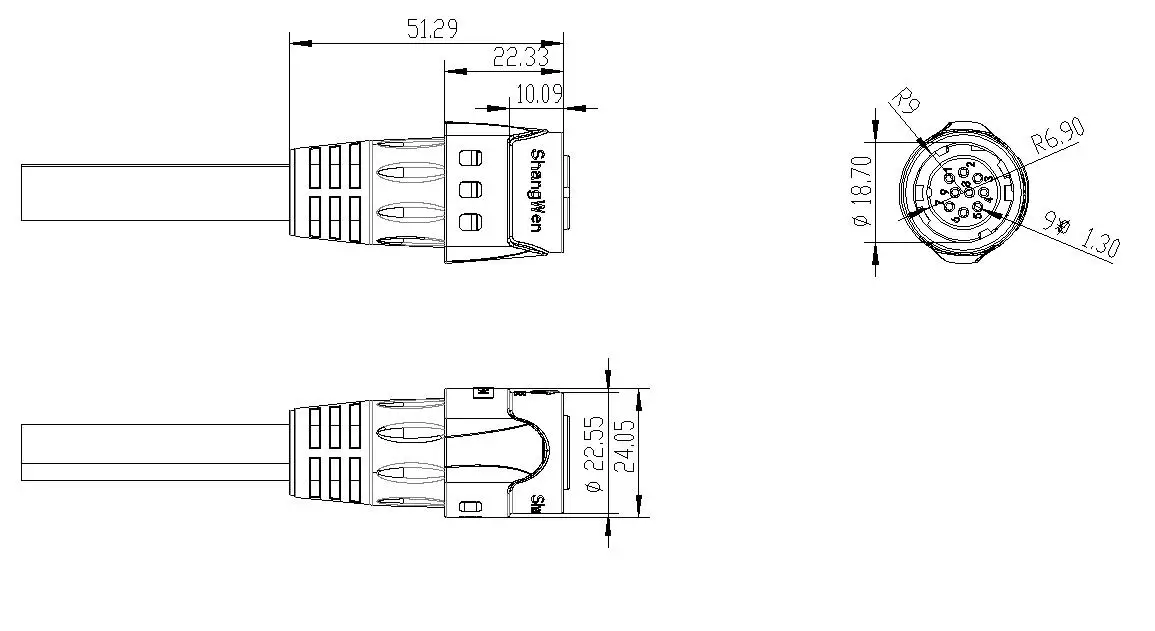

Male plug
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector
Female plug
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector

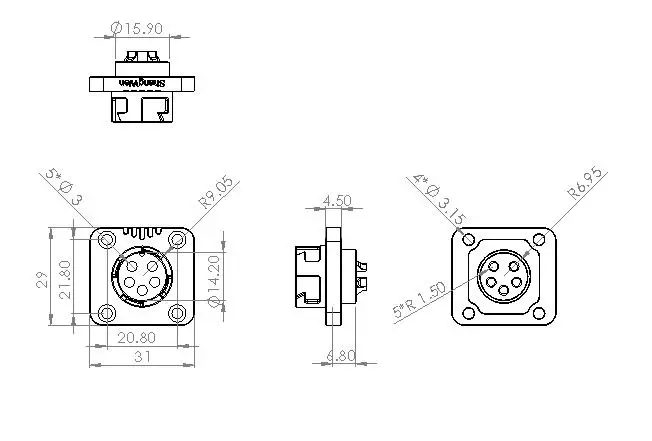

Male socket
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector

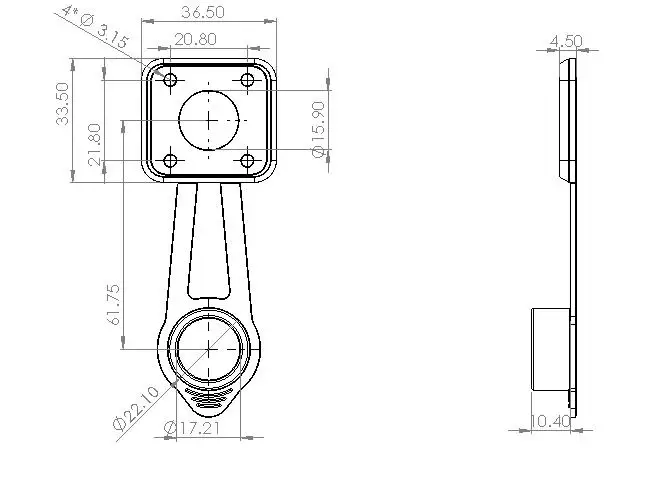

Waterproof gasket
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector

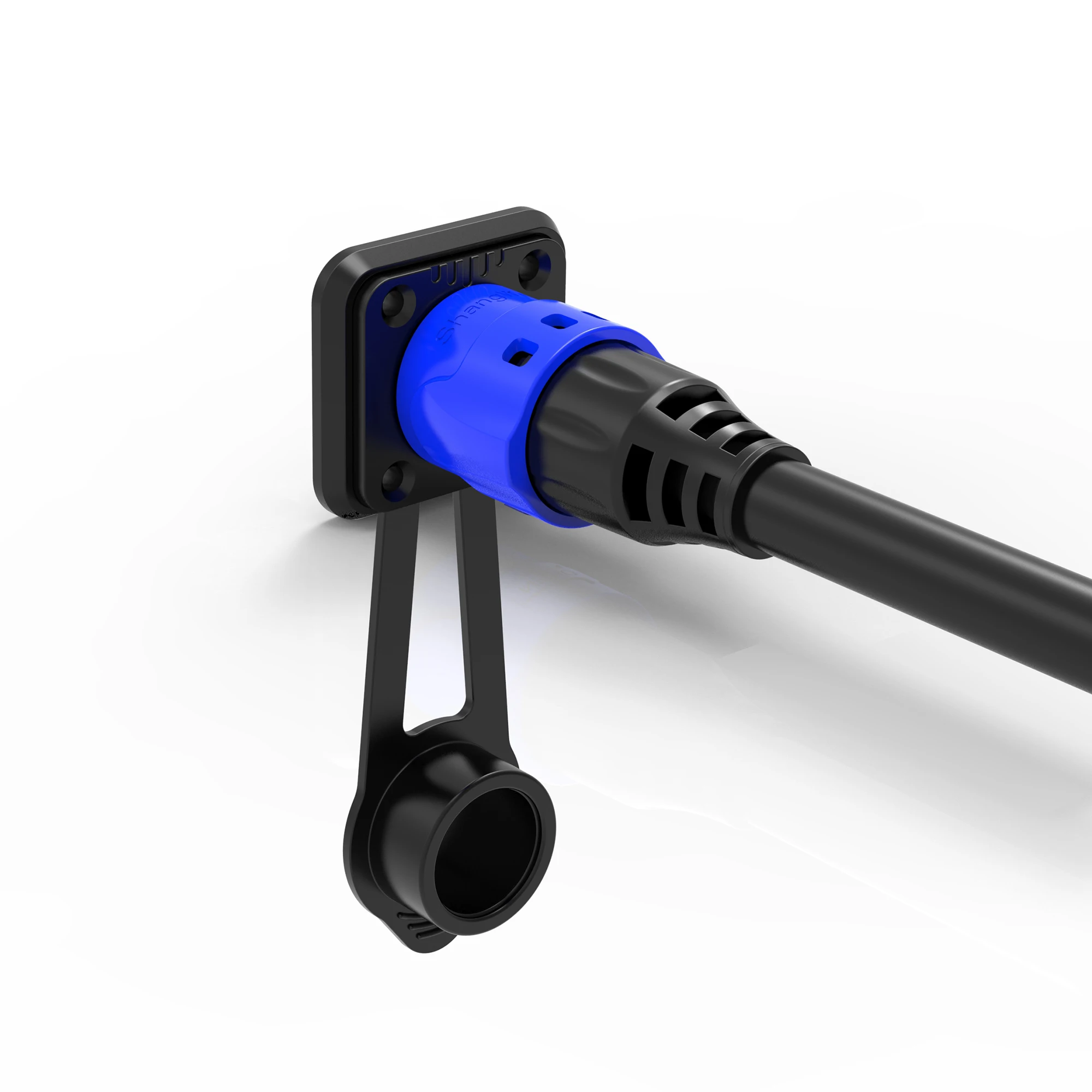

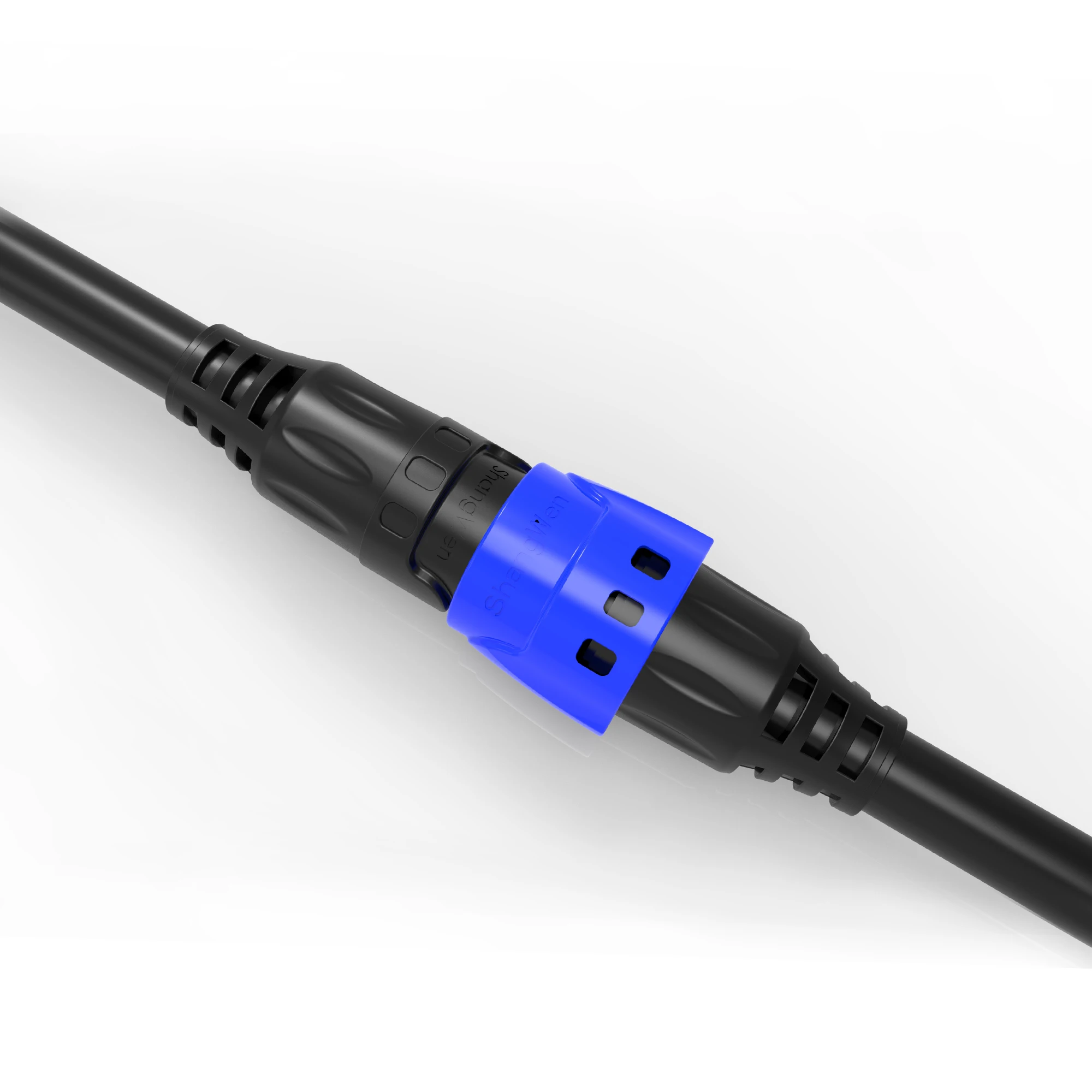

5.Operating reference
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector
Application area
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector
Company Information
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector
Patent & Certification
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector
Exhibition activities
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector
Packaging reference
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector
Payment and logistics
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector
FAQ
M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
