Indoor Protection DMX Signal Wire Class Ip40 High Quality XLR Audio Connector 3 Pin Male Plug

Name: Indoor Protection DMX Signal Wire Class Ip40 High Quality XLR Audio Connector 3 Pin Male Plug
Brand: SHANGWEN
Price: 0.84 USD

Cheap Indoor Protection DMX Signal Wire Class Ip40 High Quality XLR Audio Connector 3 Pin Male Plug for sale

Application : Audio & Video

Rated Current : 10 A

Model Number : SWM3X-3TBN-KN(Black),SWM3X-3TSN-KN(Sliver)

Brand Name : SHANGWEN

Place of Origin : Guangdong, China

Gender : Male

Housing Material : Zinc Alloy

IP Level : IP40

Type : XLR connector

Industrial electronics : accessories

MOQ : 10 pieces

Price : $0.84-0.86 / piece

Contact Now

Products Description

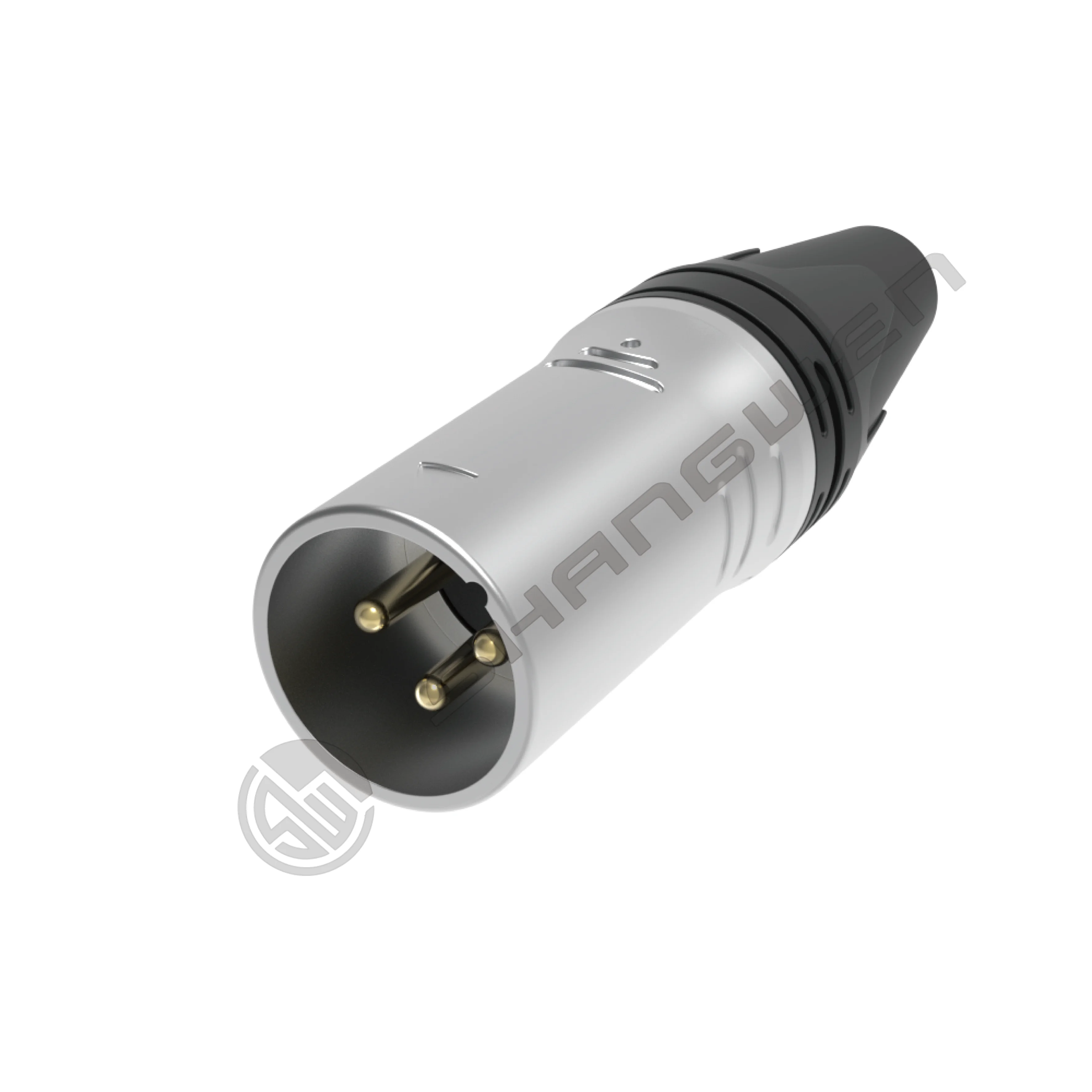

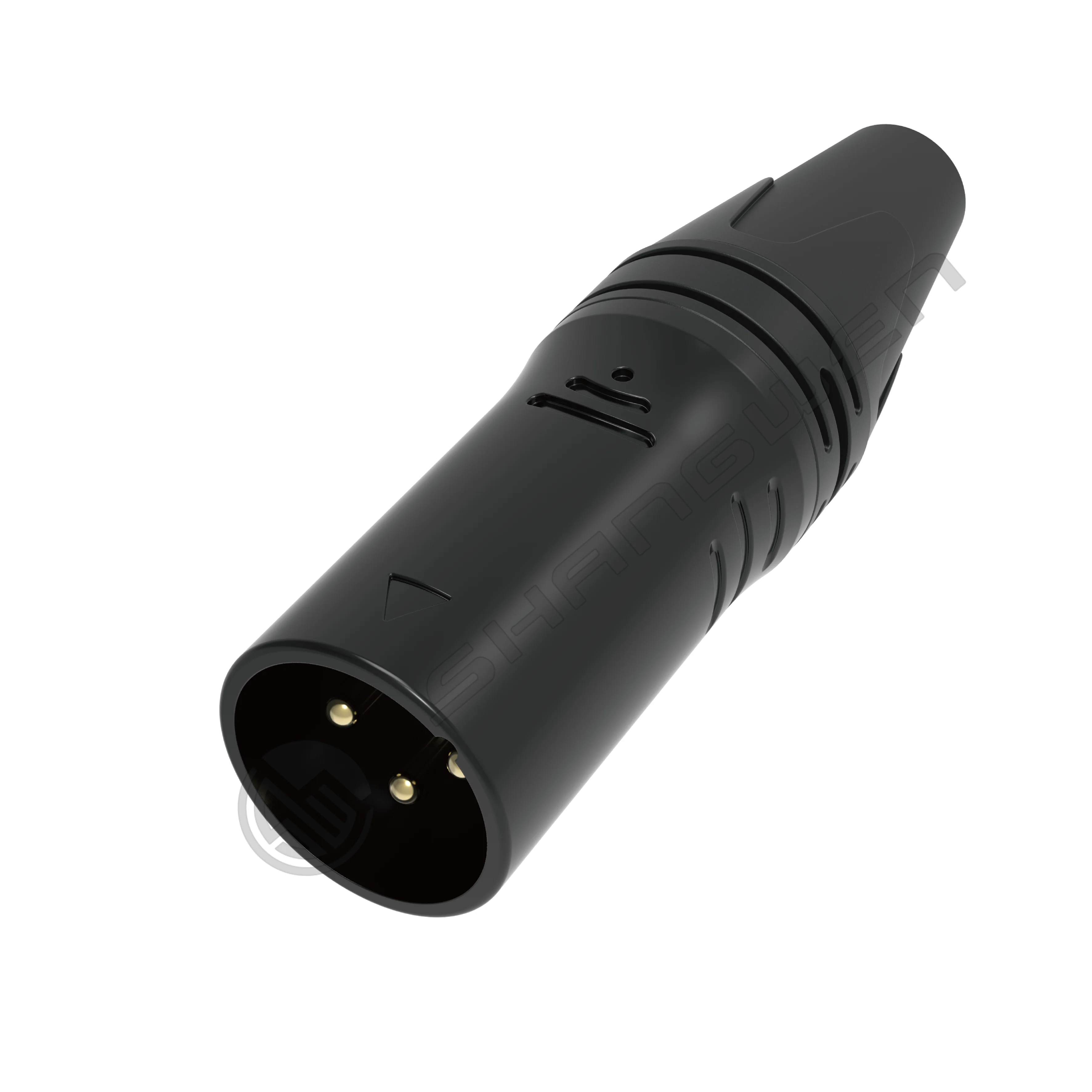

XLR connector-3 pin male plug

Indoor Protection DMX Signal Wire Class Ip40 High Quality XLR Audio Connector 3 Pin Male Plug

Model：

SWM3X-3TBN-KN(Black)

SWM3X-3TSN-KN(Sliver)

☑One hand can operation, push the button to pull it out
☑The contact pin is gold-plated，the shell plating black
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Protection class IP40
☑Wire diameter range: 3.5-8mm

1.Product parameters

Connection Type	XLR
Gender	Male

2.Electrical parameters

Capacitance between contacts	≤4pF
Contact resistance	≤3mΩ
Dielectric strength	1.5kVdc
Insulation resistance	> 1.5GΩ (initial)
Rated current per contact	10A
Rated voltage	<50V

3.Mechanical parameters

Sign Cable O.D.	3.5-8mm
Insertion force	≤ 40N
Withdrawal force	≤ 40N
Service life	＞1000 mating cycles
Wire size	Max. 2.5 mm²
Wire size	Max. 14 AWG
Locking device	Latch lock

4.Material and environmental parameters

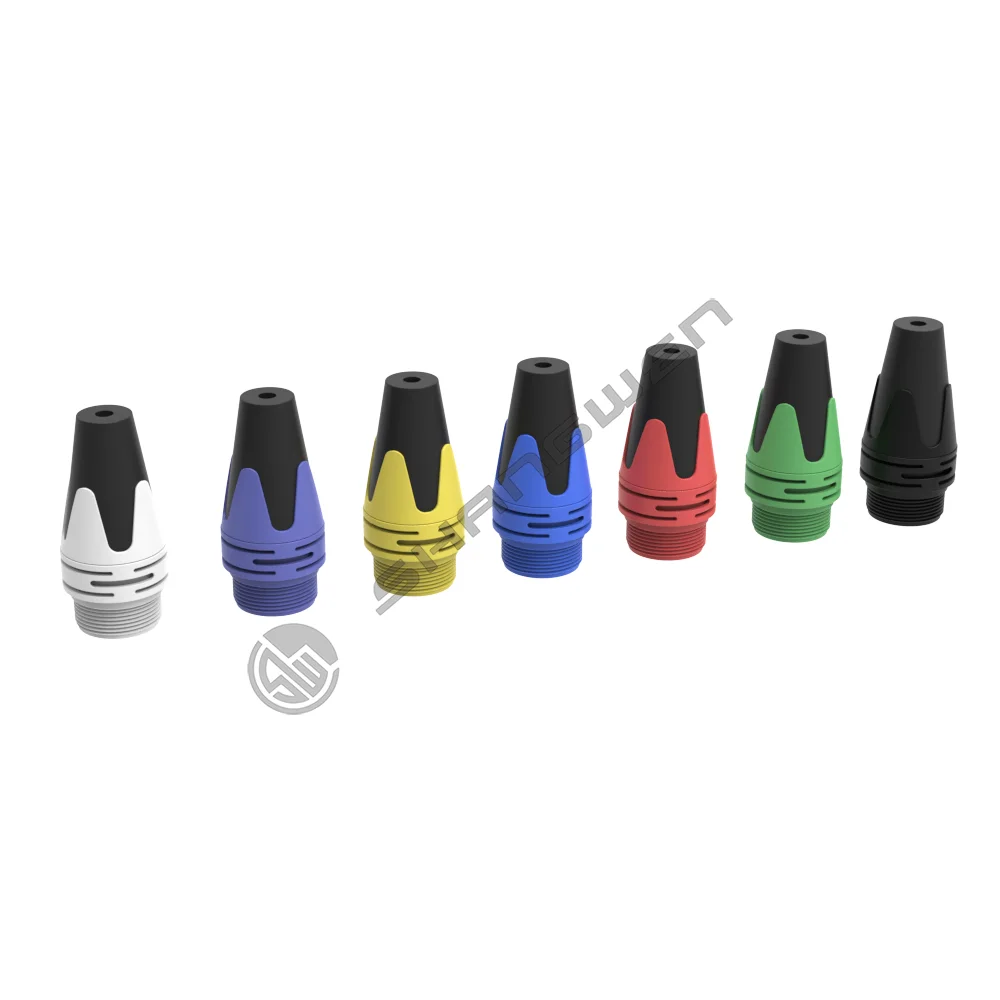

Boot	TPU
Contacts	Cu alloy
Contact plating	Au
Insert	Polyamide (PA 66 +30 % GF)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Cr Black
Strain relief	Polyacetal (POM)
Flame-retardant grade	UL 94 HB
Protection class	IP40
Temperature range	-20℃to +80℃

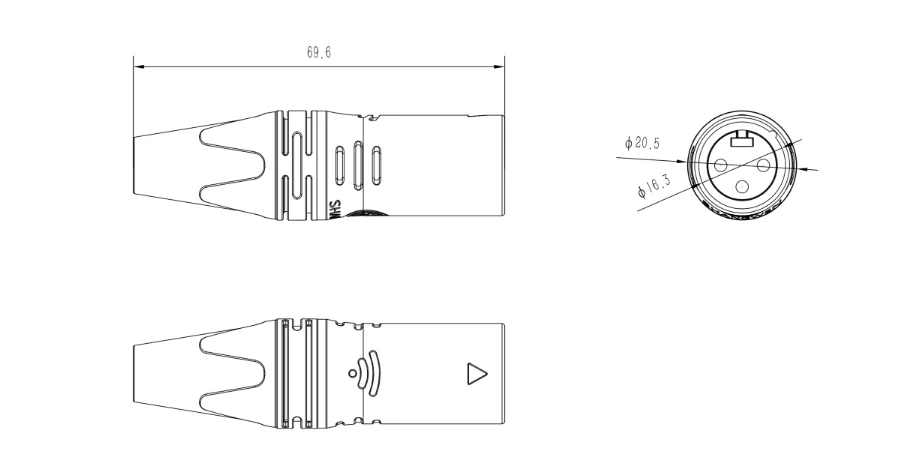

5.Size reference (unit /mm)

6.Assembly reference

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
