Professional Speaker Powercon Wire Connectors 40a Panel Audio Signal Female Plug 4 Pin 4Pins Loudspeakers Plastic Connector

Application : Audio & Video

Rated Current : 40A

Model Number : SWF4S-2TJY

Brand Name : SHANGWEN

Place of Origin : Guangdong, China

Gender : Female

IP Level : IP40

Type : Loudspeaker

Industrial electronics : accessories

MOQ : 10 pieces

Price : $1 / piece

Contact Now

Products Description
4Pin Loudspeaker plug -engineering plastics material

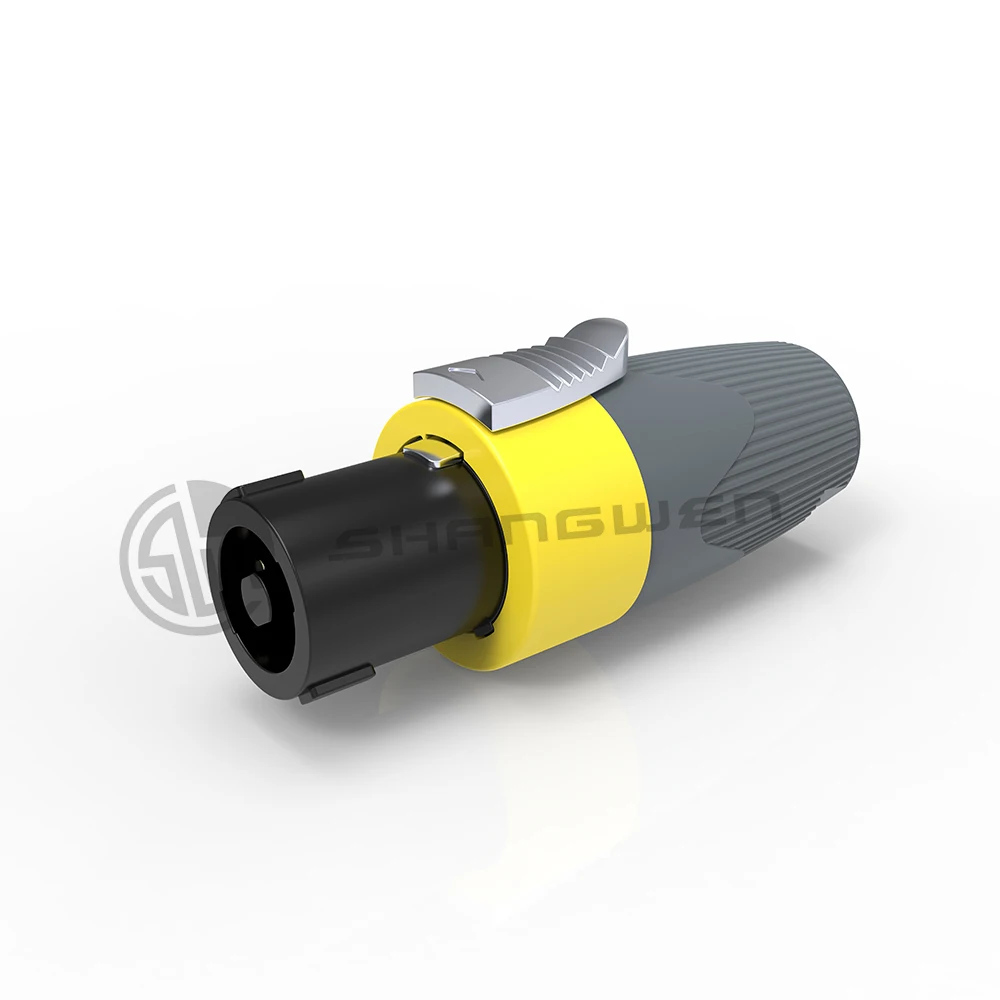

Professional Speaker Powercon Wire Connectors 40a Panel Audio Signal Female Plug 4 Pin 4Pins Loudspeakers Plastic Connector
Model：SWF4S-2TJY
☑Current rating 40 A rms continuous
☑Up to 50 A audio signal, duty cycle 50%
☑Only 3 parts, easy to assemble
☑High impact materials - long-lasting and reliable ☑Easy and extremely precise locking system "Quick Lock ☑Improved grip on latch ☑1 piece strain relief, chuck for 7 to 14.5 mm cable O.D. ☑Improved screw-type termination for highest pull-out force

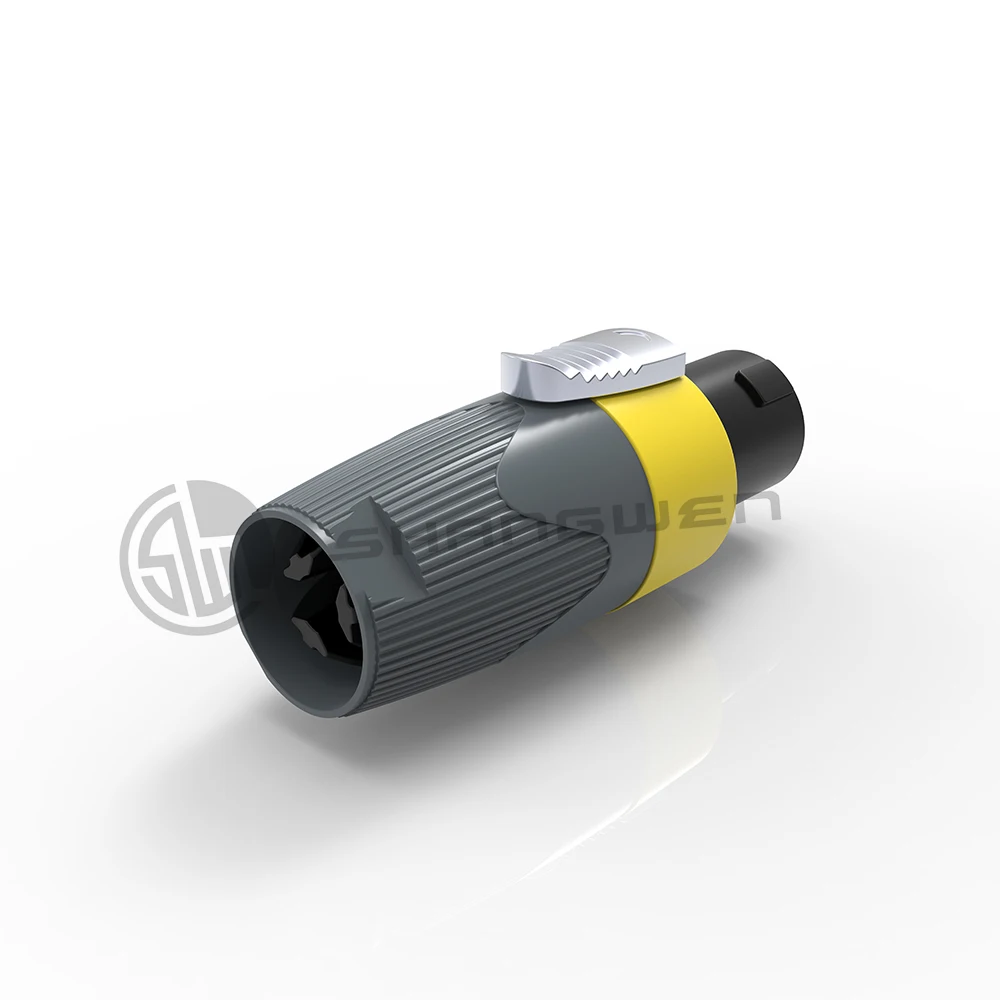

Professional Speaker Powercon Wire Connectors 40a Panel Audio Signal Female Plug 4 Pin 4Pins Loudspeakers Plastic Connector

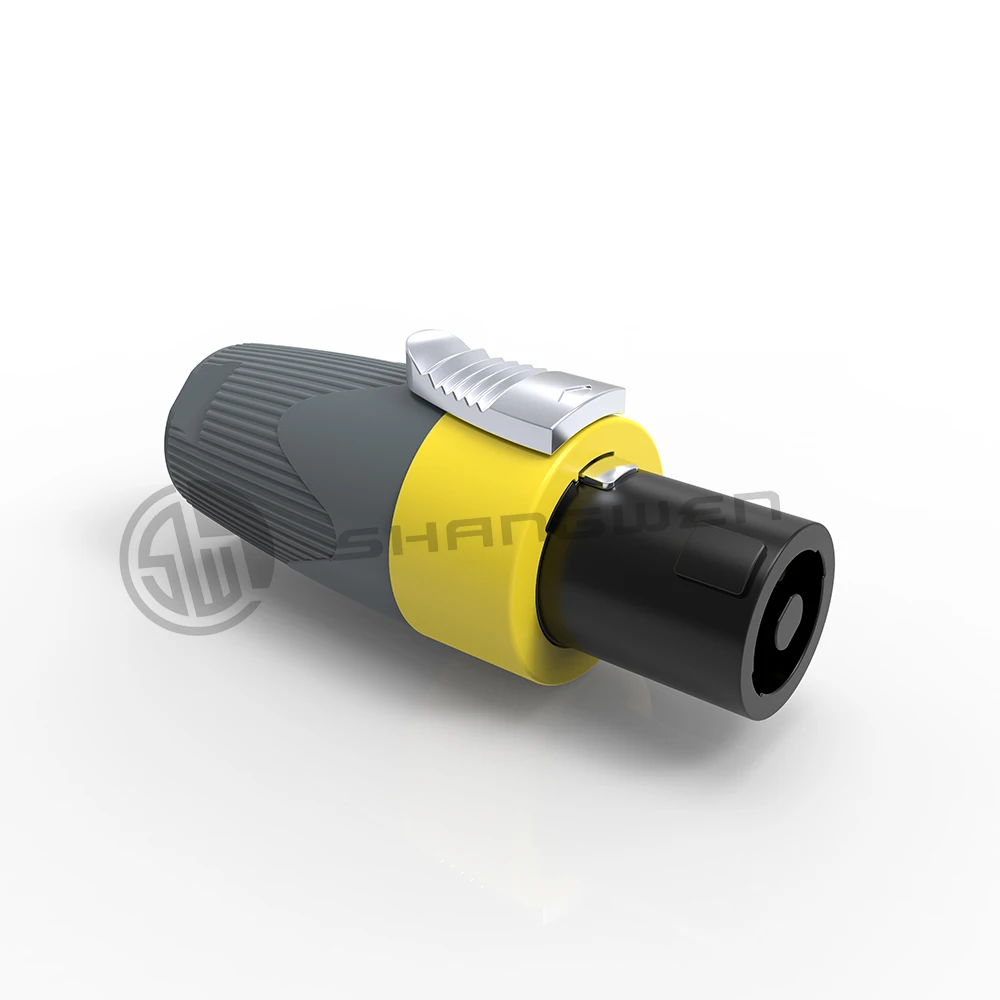

Professional Speaker Powercon Wire Connectors 40a Panel Audio Signal Female Plug 4 Pin 4Pins Loudspeakers Plastic Connector
1.Product parameters
Connection Type
Speaker
Gender
Female
2.Electrical parameters
Contact resistance
＜2mΩ
Dielectric strength
4kVdc
Insulation resistance
> 1.0GΩ (initial)
Rated current per contact
40A
Rated voltage
250 V ac
3.Mechanical parameters
Sign Cable O.D.
7-14.5mm
Cable retention
≥220N
Service life
＞5000 mating cycles
Wire size
4 mm²/6mm²
Wire size
12AWG/10AWG
Locking device
Latch lock
4.Material and environmental parameters
Contacts
Brass
Contact plating
Ag
Insert
PBTP 20% GR
Shell
PBTP 20% GR
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 HB
Temperature range
-30℃to +80℃

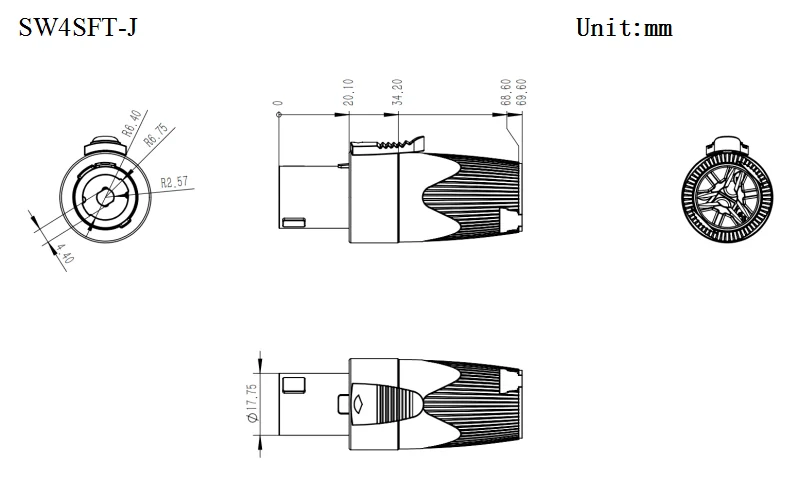

5.Size reference (unit /mm)
Professional Speaker Powercon Wire Connectors 40a Panel Audio Signal Female Plug 4 Pin 4Pins Loudspeakers Plastic Connector

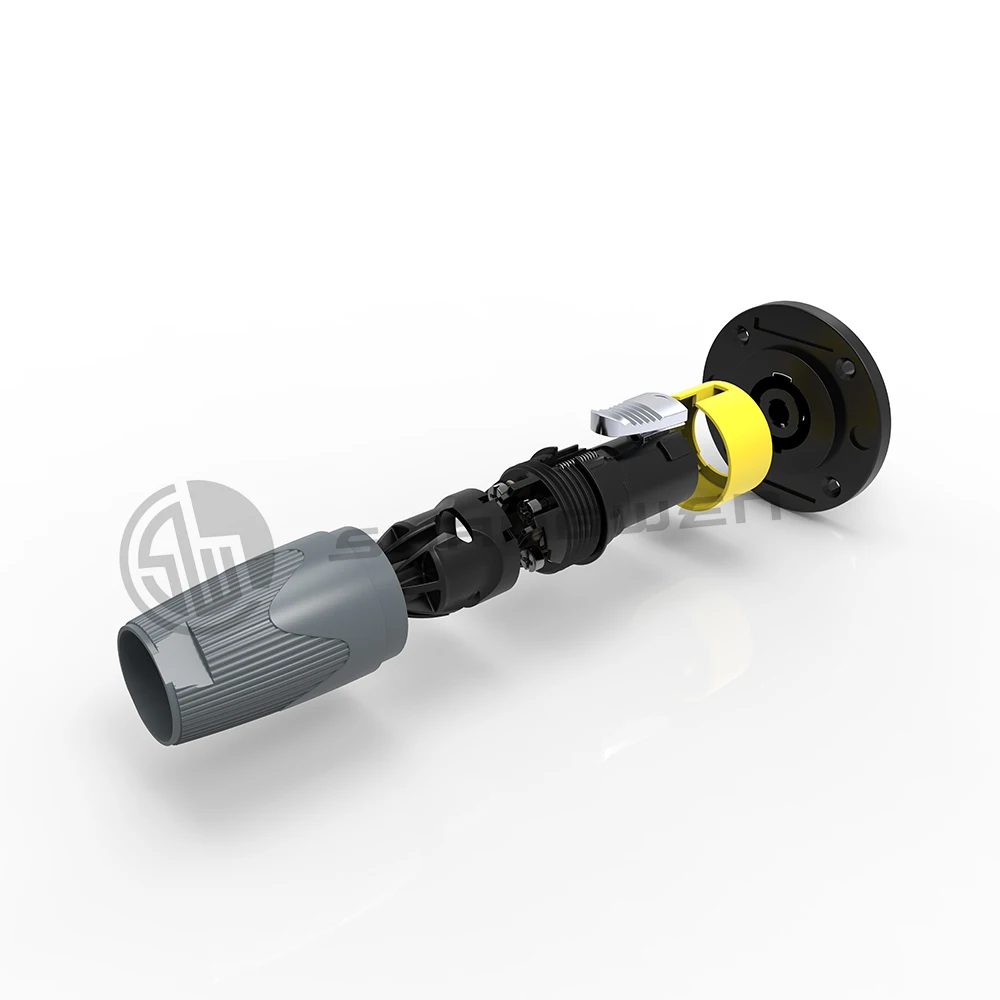

6.Assembly reference
Professional Speaker Powercon Wire Connectors 40a Panel Audio Signal Female Plug 4 Pin 4Pins Loudspeakers Plastic Connector
Application area
Professional Speaker Powercon Wire Connectors 40a Panel Audio Signal Female Plug 4 Pin 4Pins Loudspeakers Plastic Connector
Company Information
Professional Speaker Powercon Wire Connectors 40a Panel Audio Signal Female Plug 4 Pin 4Pins Loudspeakers Plastic Connector
Patent & Certification
Professional Speaker Powercon Wire Connectors 40a Panel Audio Signal Female Plug 4 Pin 4Pins Loudspeakers Plastic Connector
Exhibition activities
Professional Speaker Powercon Wire Connectors 40a Panel Audio Signal Female Plug 4 Pin 4Pins Loudspeakers Plastic Connector
Packaging reference
Professional Speaker Powercon Wire Connectors 40a Panel Audio Signal Female Plug 4 Pin 4Pins Loudspeakers Plastic Connector
Payment and logistics
Professional Speaker Powercon Wire Connectors 40a Panel Audio Signal Female Plug 4 Pin 4Pins Loudspeakers Plastic Connector
FAQ
Professional Speaker Powercon Wire Connectors 40a Panel Audio Signal Female Plug 4 Pin 4Pins Loudspeakers Plastic Connector
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
